SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: none

Origin: Mainland China

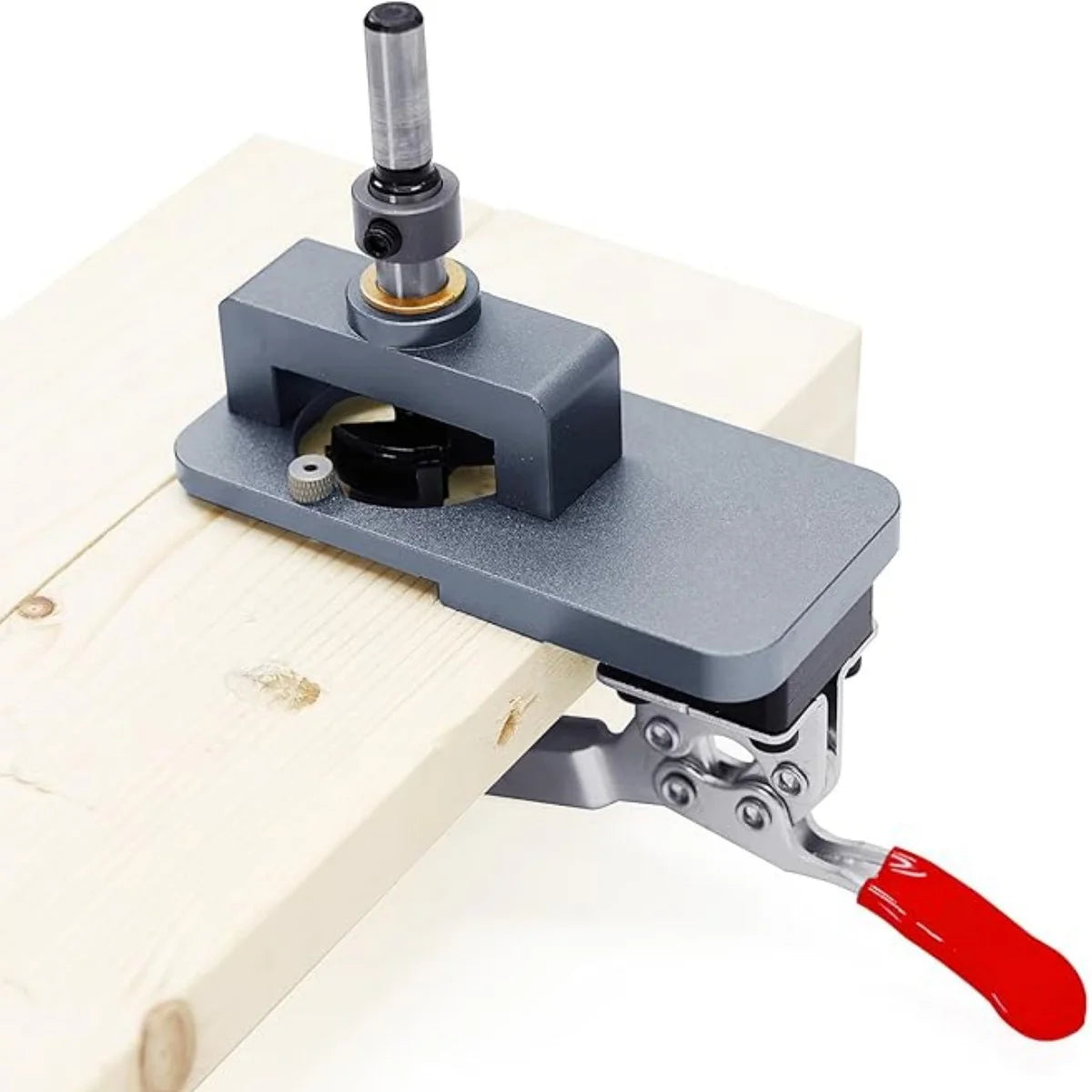

1.High Precision：All metal cabinet hinge jig made of high quality aluminum alloy，The bottom surface is very flat， Is more durable and accurate than plastic jigs. The all metal concealed hinge jig bulit-in double bearings ,the lateral shaking is reduced, and the drilling is more stable and accurate.provides continuous hinge hole drilling and much easier， making drilling more accurate.

2.Easy and Fast：cabinet hardware jig provides quick cabinet hinge hole depth setting，Move the hole puncher to the mark and drilling position of the board, lock the quick clip，it easy to use and greatly improves the efficiency and accuracy of installing cabinet hinges. You can easily clamp and fix the concealed hinge jig, quickly drill holes and install hidden cabinet door hinges.

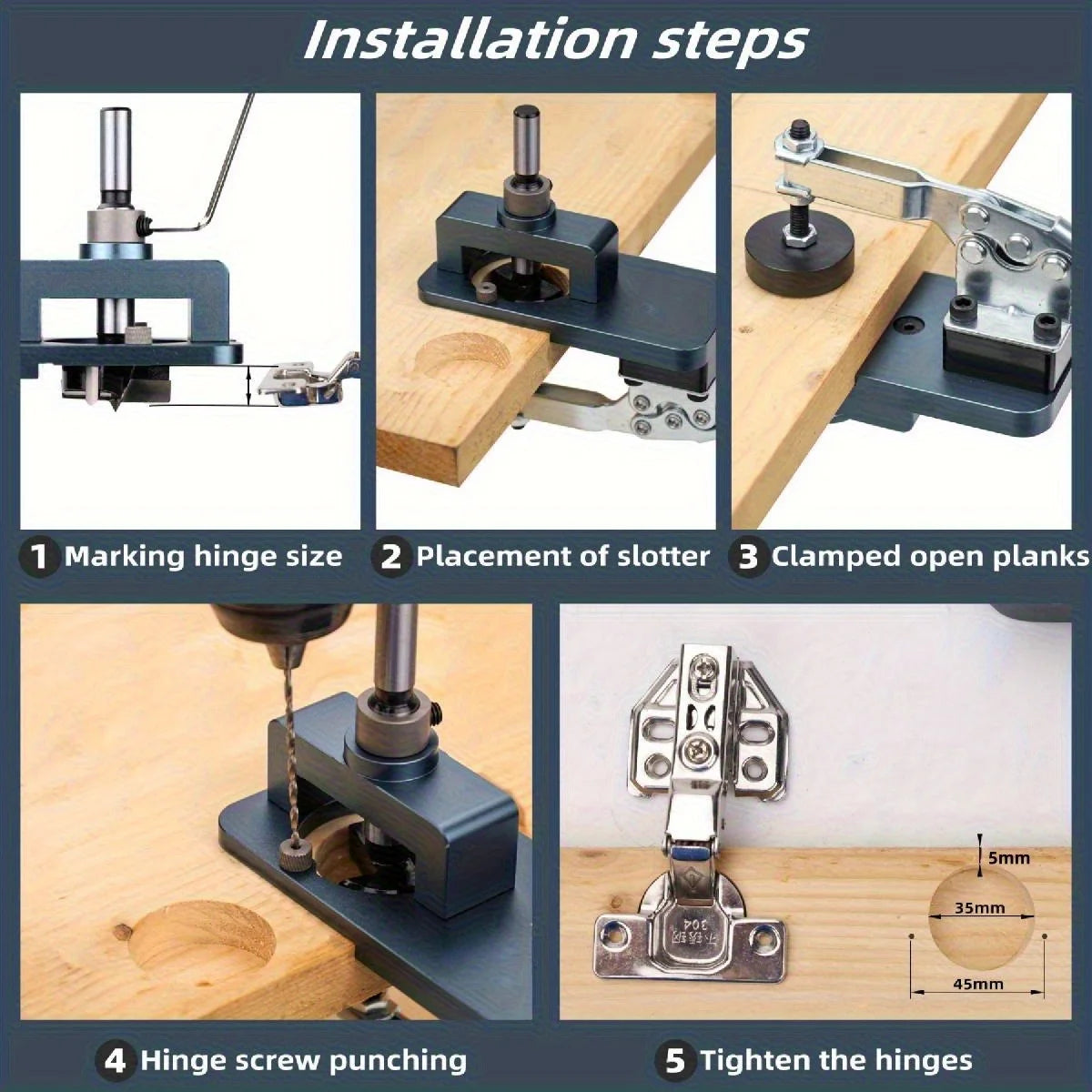

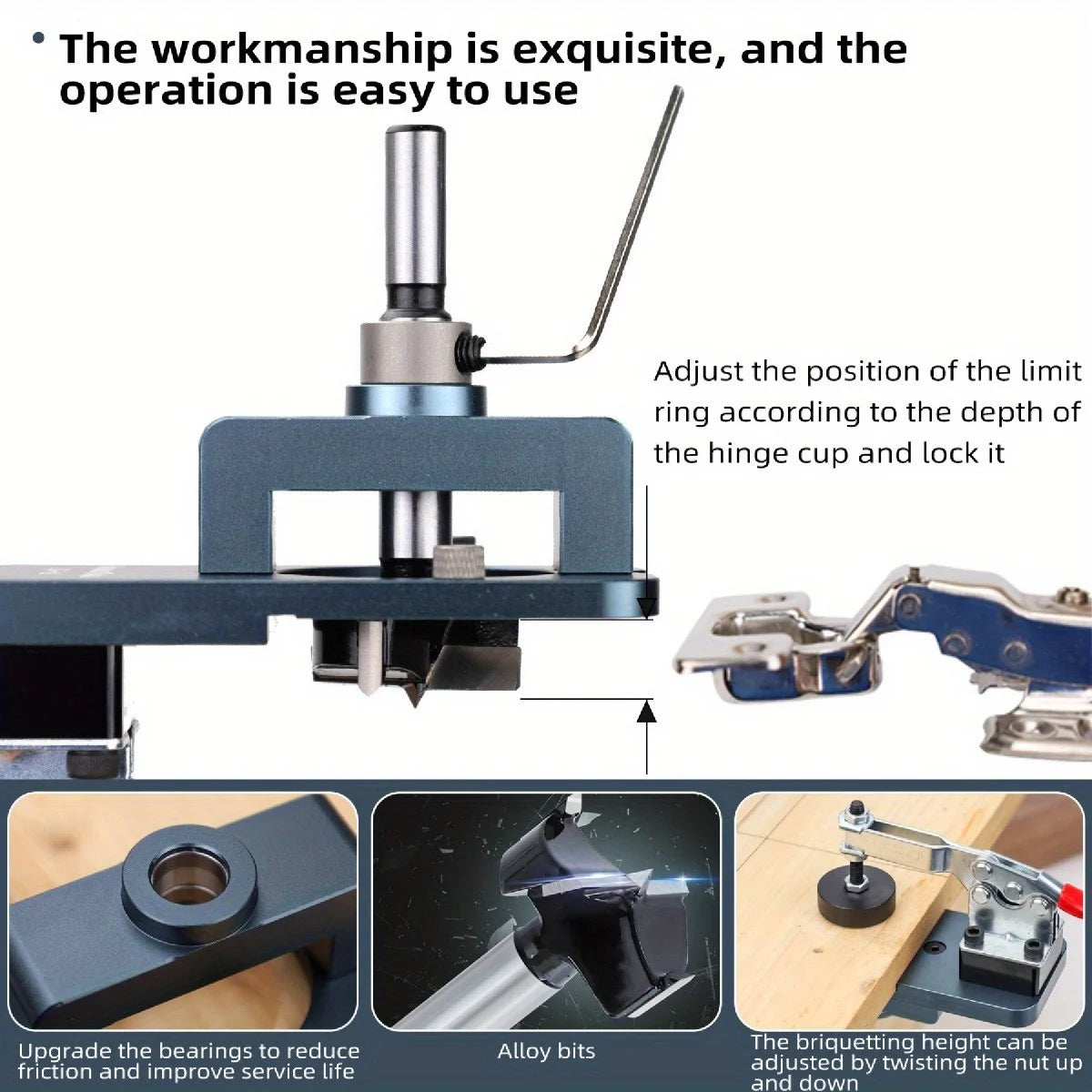

3.Installation steps：The kitchen hinge jig positioning hole opener installation steps 1. Adjust the drilling depth of the limit ring, normally 12-13MM. 2. Adjust the size to adapt to the thickness of the clamped board. 3. Quickly clamp the locking plate according to the drill mark. 4. Drill 35mm and left and right 2mm screw holes 5. Installation Hinge
